Ventisense
Ventisense is a homecare mechanical ventilator that artificially maintains respiratory function for patients whose lungs cannot. Three models cover the range from pediatric to adult care, in one 2.8 kg platform with up to 100% oxygen delivery, an ultrasonic O₂ sensor and ten ventilation modes.
Features
High-FiO₂ performance
Patented oxygen path delivers up to 100% oxygen with optimal utilization — maximum saturation with less waste of the oxygen source.
Ultrasonic O₂ sensor
Measures oxygen with high precision using ultrasonic technology, with a 10-year life and no cell to replace.
Down to newborns
A minimum 50 ml tidal volume adapts to pediatric physiology, making safe support possible even for the smallest patients.
With you anywhere

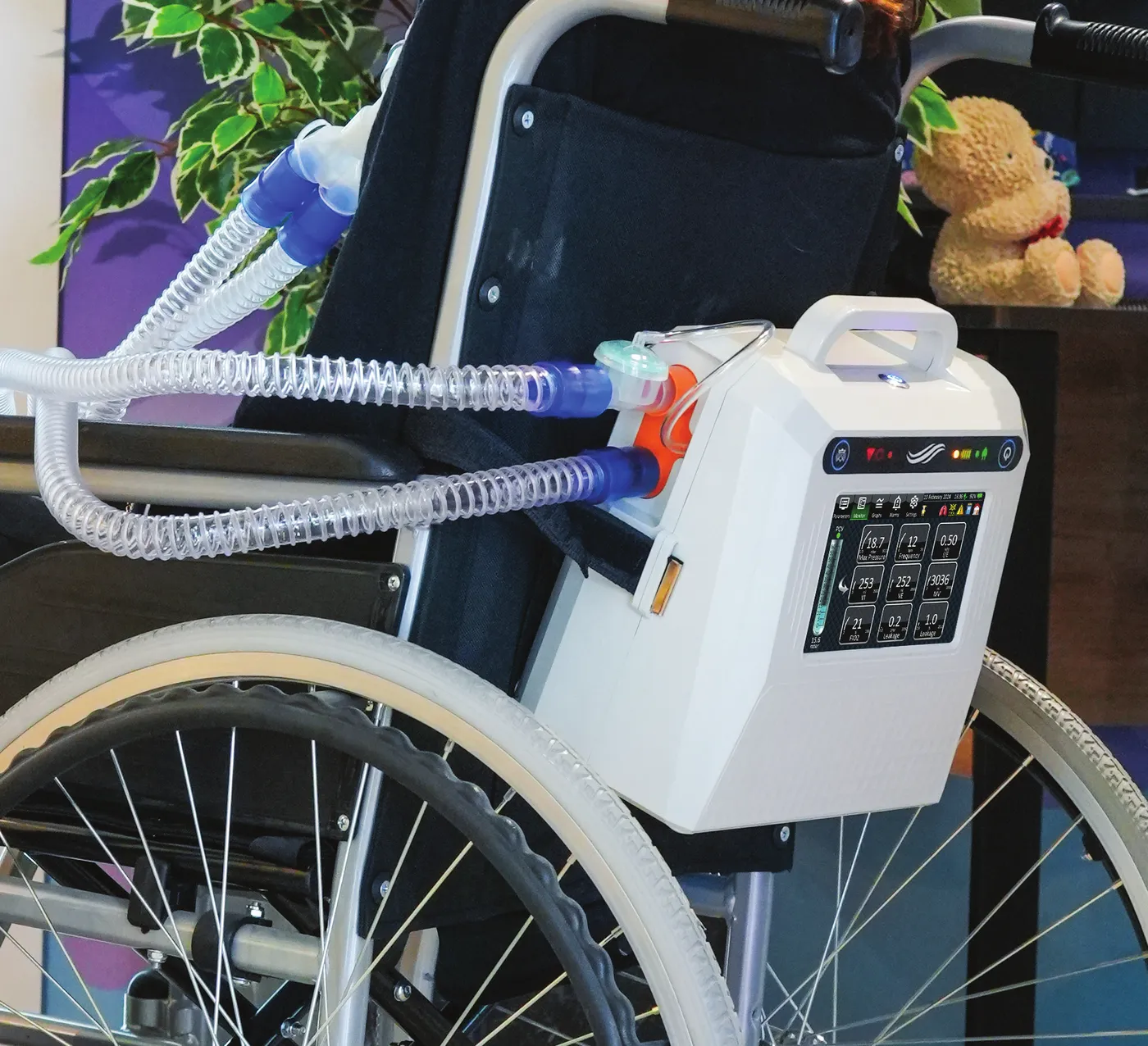

At 2.8 kg with ~8 hours of battery and dual vertical/horizontal use, Ventisense moves with the patient — chair, pole or bedside.
Fast, precise core
A 480 MHz microcontroller and precision digital sensors drive an efficient algorithm, with auto setting-change on alarm conditions.
See every breath
Pressure, flow and volume waveforms with 39 monitoring parameters on fully customizable screens, in eight languages.
Compare the models
| Models | Ventisense 40 | Ventisense 60 | Ventisense PRO |
|---|---|---|---|
| Patient group | Pediatric | Adult | Adult + Pediatric |
| Respiratory rate | 4–60 bpm | 4–30 bpm | 4–60 bpm |
| Pressure range | 3–40 mbar | 3–60 mbar | 3–60 mbar |
| Tidal volume | 50–200 ml | 200–2000 ml | 50–2000 ml |
Technical specifications
Physical
- Dimensions
- 275 × 275 × 145 mm
- Weight
- 2.8 kg
- Display
- 7″ TFT-LCD, capacitive touch
- Orientation
- Vertical & horizontal (auto-rotate)
Power
- Mains
- 100–240 VAC, 50/60 Hz
- DC input
- 24 VDC, 120 W
- Internal battery
- 92 Wh Li-Ion, ~8 h
Ventilation
- Respiratory rate
- 4–60 bpm
- Pressure
- 3–60 mbar
- Tidal volume
- 50–2000 ml
- O₂ delivery
- up to 100% FiO₂ (patented)
- Ventilation modes
- 10 modes
Sensing & monitoring
- O₂ sensor
- Ultrasonic, 10-year life
- Leak measurement
- from 0.6 LPM
- Environment
- Temperature & humidity sensors
- Motion
- Accelerometer (fall detection)
- Monitoring parameters
- 39 live parameters
- Service life
- 20,000 operating hours
Who it is for
Indicated for adult and pediatric patients weighing more than 5 kg with a tidal volume of 50 ml and above, in home treatment. Conditions managed include COPD, neuromuscular disease, obesity-hypoventilation, restrictive disorders and other causes of chronic respiratory insufficiency.
Ten ventilation modes
From fully controlled (PCV, VCV) through assisted and SIMV to spontaneous support (PSV, BiLEVEL, CPAP) and high-flow oxygen — explained mode by mode.
Technologies & ModesFrom newborns to active daily life
